THE MERCEDES 4×4 RANGE
THE MERCEDES 4×4 RANGE

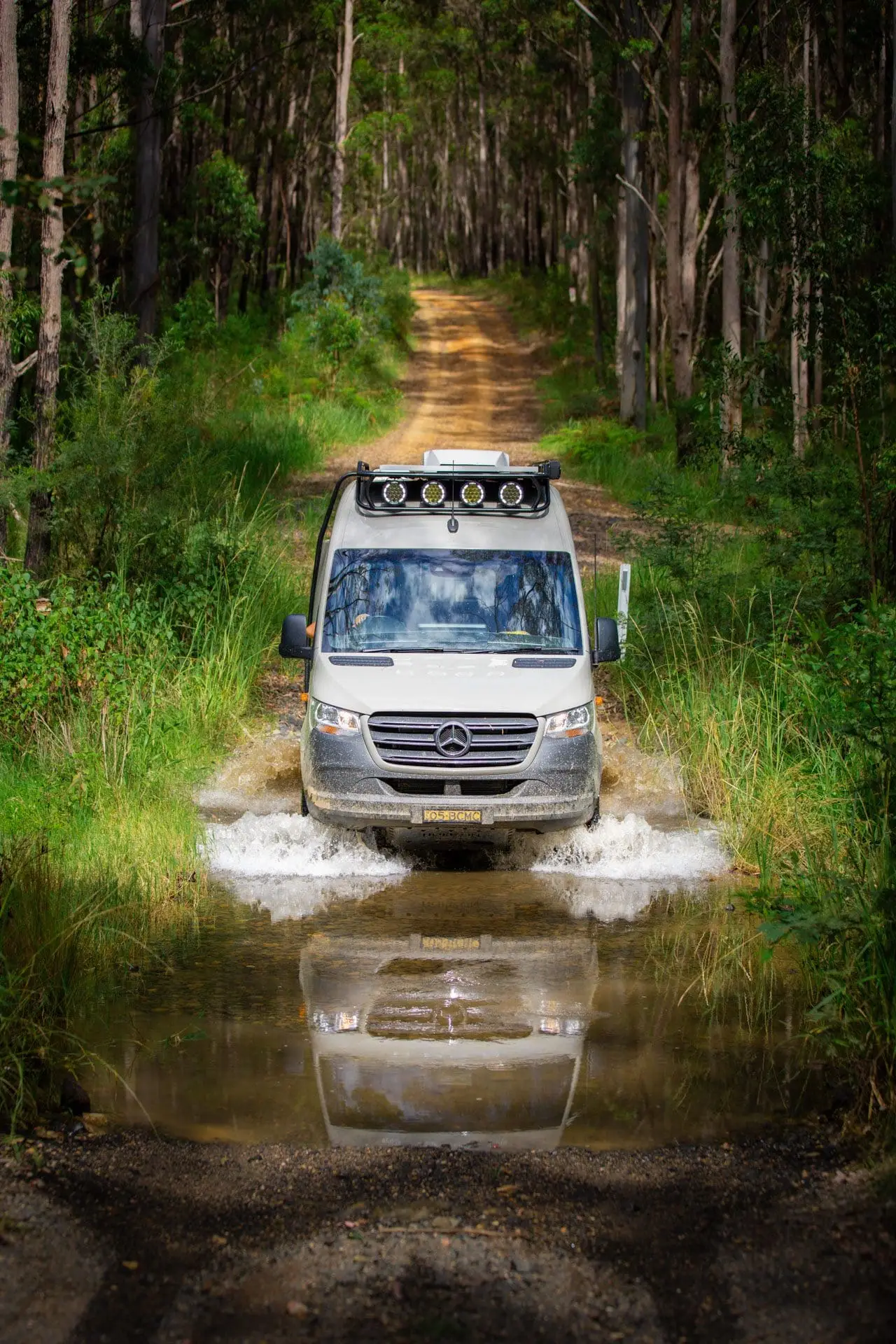

GO PLACES A STANDARD MOTORHOME CAN’T GO
Built into the Mercedes Benz Sprinter, the 4×4 Range from award-winning Horizon Motorhomes gives you the freedom to explore in a home away from home that drives like a car.
All models are equipped with 4ETS, All Wheel Drive and ADAPTIVE ESP® Available in the Waratah, Boronia and Wattle layouts, each vehicle is built using only the finest fixtures and fittings.
GETTING A GRIP ON YOUR DRIVING
The key electric control system for the AWD Mercedes Benz Sprinter is called ADAPTIVE ESP® /4ETS. It is activated when one or more wheels begin to lose traction on a slippery surface. The system automatically applies the appropriate braking force to each of the spinning wheels and simultaneously increases tractive power to the wheels which still have sufficient grip, resulting in a significant increase in traction. ESP® plays a pivotal role in controlling your vehicle in measuring and responding to the vehicle’s load condition.
With All-Wheel Drive your motorhome is in its element on roads that alternate between normal to difficult. All-Wheel Drive is always active when driving. This allows a full variable of torque-on-demand controlled distribution between the front and rear axles from 0-100%.
4ETS & ADAPTIVE ESP®
The 4ETS electronic traction system permanently monitors the speeds of all drive wheels and adjusts them if necessary. At the first sign of wheel spin when accelerating or negotiating a slope, 4ETS applies brake pressure to the wheel or wheels concerned. This transfers more power to the wheels that still have sufficient traction. 4ETS therefore dispenses with the need for conventional centre, front and rear differential locks.
When braking or cornering, 4ETS and ADAPTIVE ESP® act as a team. At the first sign of wheel lock or if the vehicle threatens to lose traction and skid, ADAPTIVE ESP® stabilises the vehicle by applying precisely metered braking to one or more wheels and/or adjusting engine torque. This keeps the vehicle on track and, at the same time, can reduce stopping distances. ADAPTIVE ESP®/4ETS thus reduces the risk of skidding and, within physical limits, optimises traction.
LOW-RANGE DRIVE RATIO
The low-range drive ratio enhances operational versatility on difficult terrain. An intermediate gear in the transfer case reduces the transmission ratio between engine and wheels by around 40%, with a corresponding increase in drive torque. This makes it possible to manoeuvre extra slowly and sensitively.
4WD ADVANTAGES
- Improved traction on slippery or icy surfaces
- Improved directional stability in critical situations
- Full ADAPTIVE ESP® functionality
- All-wheel drive only marginally increases the vehicle weight
- Torque-on-demand controlled distribution between the front and rear axles from 0-100%
VEHICLE SPECIFICS:
- Mercedes 419CDI – 4 Wheel Drive, Single Rear Wheels
- Wheel-Base: Mercedes Benz MWB / LWB
- Power: kW / Nm: 140 / 440
- Transmission: Automatic
- Gross Vehicle Mass (GVM): 4100
- External Length: 6075 / 6961
- External Width: 1993
- External Height/+Air Con (MWB): 2790 / 2925
- External Height/+Air Con (LWB): 2820 / 2955
- Fuel Capacity (Litre): 93Ltr
4WD MOTORHOMES RANGE
FLOOR PLANS
The 2WD or 4WD model sleeps up to two people with options for twin bed layout or with the day-bed infill. Click on the image below to see a larger view of the Wattle, Waratah or Boronia floor plan.
WATTLE
2
2
4WD OPTION
WARATAH
3
2
4WD OPTION
BORONIA
2
1-2
4WD OPTION
INTERIOR OPTIONS
These options are a guide only, please contact us to find out more about the interior options for your Horizon Motorhome.
GALLERY
Scroll through our gallery images and click to see the larger view. If you would like to view one of our Horizon models in person, please contact us and we’ll be in touch to arrange a time that suits you.
STANDARD INCLUSIONS
The 4×4 range includes the Boronia, Wattle and Waratah models. Each model is designed to be practical, functionality and contain all the features you need for your home-away-from home, especially when you are off the beaten track. The bathroom includes shower, basin with flick mixer taps and toilet and there are various bed layouts to choose from. The list of standard inclusions is impressive and not limited to Earthwool ceiling and upper wall insulation, double-glazed hopper windows with built in window blinds/flyscreens, wind out awning, TV/DVD, USB ports, LED lighting inside and out and much more.
COLOUR OPTIONS
These options are a guide only, please contact us to find out more about the colour options for your Horizon Motorhome.
CONTACT US
Call Horizon Motorhomes or fill out the form and one of our experts will call you back.
